product: Solar Spandrel

Maximum power output from vertical surfaces

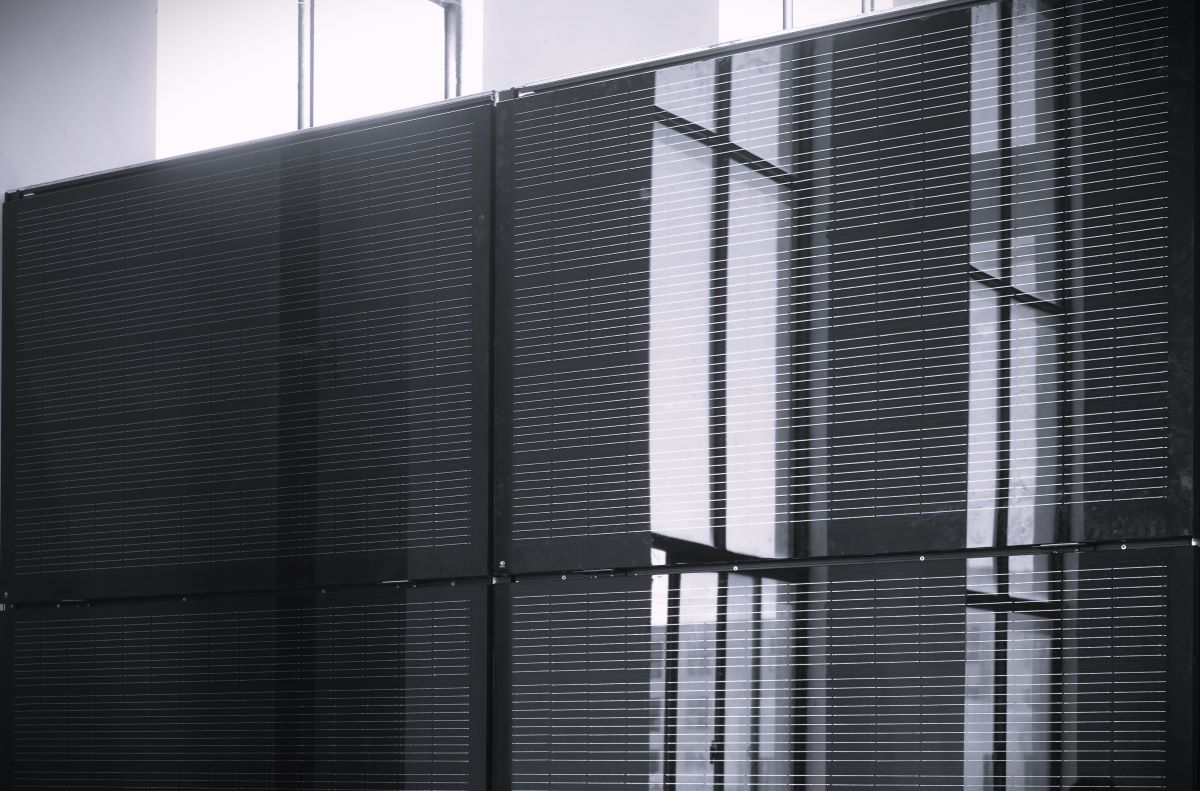

 ClearVue full cover spandrel is engineered to replicate traditional black glass spandrel. We offer two options of all black solar spandrel so you can balance desired building aesthetics with power generation and carbon offset goals: pure black spandrel and the high-efficiency spandrel for peak power generation.

 ClearVue black spandrel solutions deliver excellent reliability, efficiency, and performance for building sustainability.

 ClearVue full cover spandrel is engineered to replicate traditional black glass spandrel. We offer two options of all black solar spandrel so you can balance desired building aesthetics with power generation and carbon offset goals. First, we offer a pure black spandrel option the prioritizes a unified smooth black appearance. Second, if energy generation is the priority, our high efficiency spandrel increases energy generation performance.

Product features

  • Energy generation of up to 166 watts per sq m
  • Mono Crystalline cell type
  • Behind the meter energy generated can be linked to the BMS, used to power smart features, or routed to the storage activated during peak demand.

By reducing the reliance on fossil fuels, our solar spandrel can assist buildings to comply with ESG and carbon policies, and achieve green certifications and high energy efficiency ratings.

By producing clean energy on-site our solar spandrel offsets the building's energy requirements creating fast financial payback.

ClearVue solar spandrel can also qualify for various government incentives, and reduce carbon tax in the jurisdictions where it's been introduced.

  • Pure black uniform appearance (without lines or squares) for a beautiful aesthetic.
  • Can be tailored to support custom size requirements up to 1200mm x 1800mm and thickness up to 10+10mm laminated dependent upon structural design.
  • 1000V or 1500V system voltage available.
  • IP68-rated water resistance.
  • Fire certified by TÜV SÜD under the EN 13501-1:2018 A2-s1, d0 classification rating for combustibility.
  • High resistance to high temperatures, high humidity, sand, acid, and alkali environmental conditions
  • 12-year product warranty
  • 30-year linear power performance warranty

Compatible with standard framing systems and the range of ClearVue BIPV products.

IEC 61215-1, IEC 61215-1-1, IEC 61215-2, IEC 61730-1, IEC 61730-2, EN 13501-1:2018, AS 4284, Clean Energy Council (CEC) of Australia, ISO 9001, UL 61730, AS/NZS 1530.3

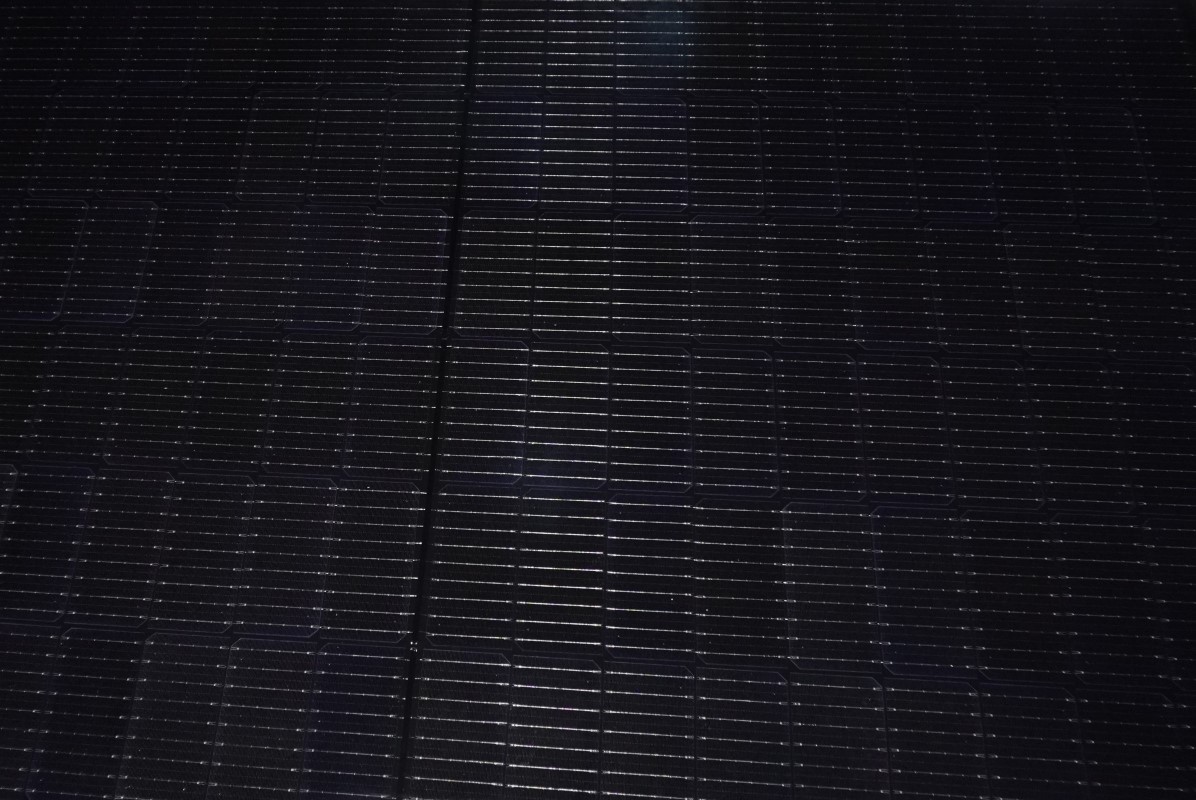

  • Energy generation of up to 200 watts per sq m
  • Integrates Multiple-Busbar (MBB) technology for  higher power output
  • Half-Cell Cutting Technology to lower the output power losses caused by shading
  • Behind the meter energy generated can be linked to the BMS, used to power smart features, or routed to the storage activated during peak demand.

By reducing the reliance on fossil fuels, our solar spandrel can assist buildings to comply with ESG and carbon policies, and achieve green certifications and high energy efficiency ratings.

By producing clean energy on-site our solar spandrel offsets the building's energy requirements creating fast financial payback.

ClearVue solar spandrel can also qualify for various government incentives, and reduce carbon tax in the jurisdictions where it's been introduced.

  • Can be tailored to support custom size requirements up to 2300x4000mm and thickness up to 10+10mm laminated dependent upon structural design with thicker variants available upon request
  • 1000 or 1500V system voltage available
  • All black uniform appearance
  • IP68-rated water resistance.
  • Fire certified by TÜV SÜD under the EN 13501-1:2018 A2-s1, d0 classification rating for combustibility.
  • High resistance to high temperatures, high humidity, sand, acid, and alkali environmental conditions
  • 12-year product warranty
  • 30-year linear power performance warranty

Compatible with standard framing systems and the range of ClearVue BIPV products.

IEC 61215-1, IEC 61215-1-1, IEC 61215-2, IEC 61730-1, IEC 61730-2, EN 13501-1:2018, AS 4284, Clean Energy Council (CEC) of Australia, ISO 9001, UL 61730, AS/NZS 1530.3

Certifications

Product Benefits

Energy & sustainability

Renewable energy generated from usually passive surfaces.

Financial benefits

By offsetting energy requirements of the building, the product drives fast financial payback

Carbon benefits

Reduce operational carbon by meeting the building’s energy requirements with renewable energy generated on-site.

High sustainability ratings

ClearZero archetype scores in the top 1% of buildings in the USA / Canada, in relation to energy performance & low carbon emissions.
