Solar vision glass

ClearVue solar windows are the source of energy, not the energy losses

ClearVue Solar Vision Glass maintains transparency and delivers both energy generation and excellent thermal performance which provides an improved Solar Heat Gain Coefficient (SHGC) when deployed across a building façade. Our Solar Vision Glass can be customized to work in most glass configurations providing flexibility for building integration.

We make transparent facade surfaces energy generating

A facade utilizing ClearVue glass looks just like regular glazed building but provides multiple benefits

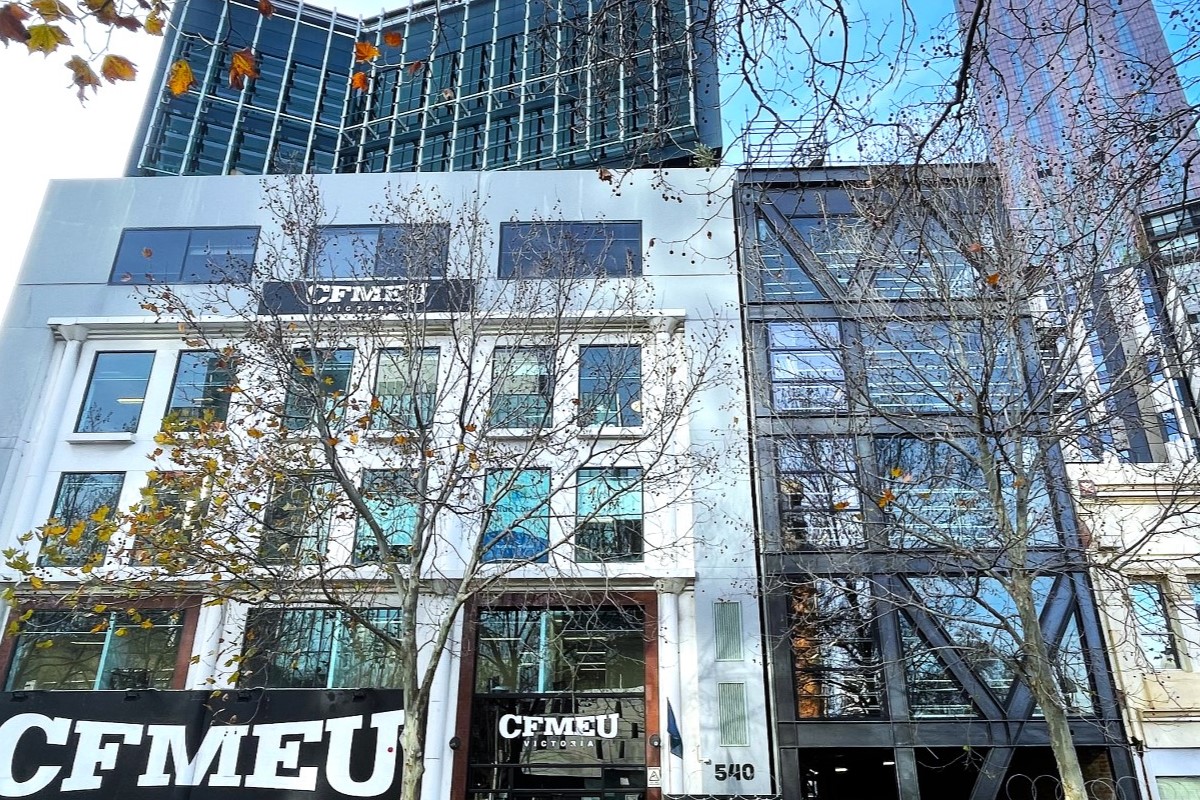

The real life installation of ClearVue glass (right part of the building) at the CFMEU Training and Wellness Centre

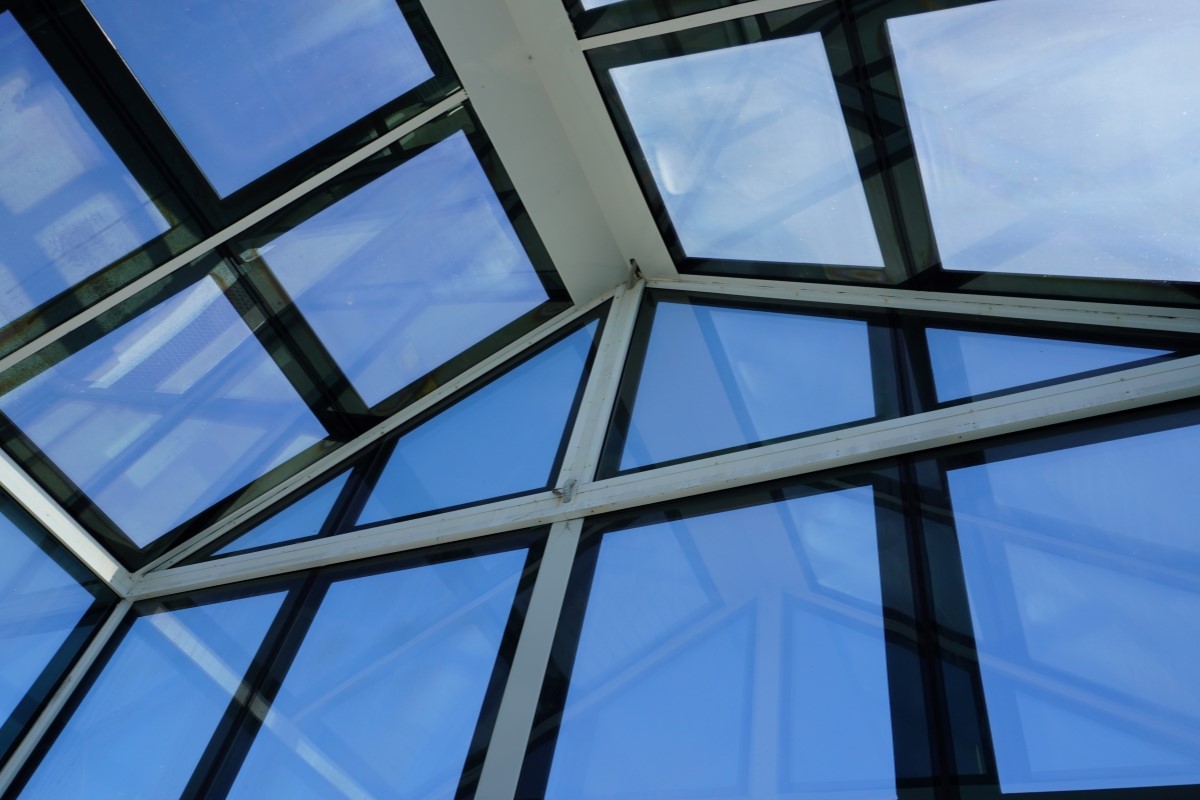

ClearVue glass has been installed (and providing electricity) for over 5 years at the Warwick Grove Shopping Centre atrium

ClearVuePV Vision Glass supports sustainable building operations by providing energy generation that significantly offsets operational energy requirements: it combines high visible light transmission with low solar heat gain coefficient.

Including ClearVuePV Solar Glass allows for a higher level of fenestration while maintaining the thermal performance of the building.

Product Features

Sustainable energy output

Energy generation of up to 30 watts peak per sq m
Decreases the use of traditional energy sources by contributing clean energy towards the building's energy use
Behind the meter energy generated can be linked to the BMS, used to power smart features, or routed to the storage activated during peak demand.

Reduced operational carbon

By reducing the reliance on fossil fuels, our solar glass can assist buildings to comply with ESG and carbon policies, and achieve green certifications and high energy efficiency ratings.

Financial benefits

By producing clean energy on-site and improving the thermal performance of buildings, our solar glass creates savings on the building's heating and cooling costs.

ClearVue solar glass can also qualify for various government incentives, and reduce carbon tax in the jurisdictions where it's been introduced.

Unparalled flexibility

Our glass comes in a variety of sizes - up to 3.5m x 2.1 m, vertical and horizontal articulation.

Compatible with most glass compositions and low emissive (low-e) coating technologies.

Compatible with standard curtain wall and framing systems.

Testing standards

EN 1279-2, EN 1279-3, ASTM E2190, IEC 61730 and IEC 61215, UL 61730, EN 13501-1 (A2-s1, d0 rating)

High VLT

Our windows allow to get maximum light in buildings - up to 70% VLT.

ClearVue solar glass is compatible with most coatings to match glass spec and other materials on the building.

SHCG reduction

Reduction of Solar Heat Gain coefficient (SHGC) by ClearVue solar windows means lower heating and cooling costs.

Architects can create buildings with higher window-to-wall ratio without compromising on the building's thermal performance.

Certifications and warranties

Fire certified by TÜV SÜD under the EN 13501-1:2018 A2-s1, d0 classification rating for combustibility

Reliable IGU seal and IP67 connectors.

High resistance to high temperatures, high humidity, sand, acid, and alkali environmental conditions.

Easy installation

Installs similar to regular IGUs, and is compatible with most standard curtain wall and framing systems.

IGU seal is equivalent to standard IGUs (Certified by Insulating Glass Certification Council).

Certifications & Compliance

Unique product with multiple benefits

Energy & sustainability

Reduced heating and cooling costs + additional energy generated from usually passive surfaces.

Occupant benefits

The use of clear glass is beneficial for health, wellness, comfort, and productivity; retain these benefits by using the ClearVue solar glass AND generating clean energy.

Carbon benefits

Reduce operational carbon by meeting the building’s energy requirements with renewable energy from our solar windows.

High sustainability ratings

ClearZero archetype scores in the top 1% of buildings in the USA / Canada with energy performance & low carbon emissions.

Request spec sheet

Access the full product information about our Solar Vision Glass by downloading the product specifications sheet, or enquire about a specific project via the Contact Us form
