METAL-BACKED BIPV • ROOFTOP SOLAR & INTEGRATED CARPARK

ClearVue-Helios

ClearVue-Helios transforms rooftops and carparks into clean energy assets with lightweight, trafficable, metal-backed solar panels engineered for commercial scale.

SCROLL TO EXPLORE
⌄

Up to 220 Wp/m²

Peak Power Output

~5 kg/m²

Aluminium-Backed Panel

~10.5 kg/m²

Steel-Backed Panel

CLEARVUE-HELIOS • METAL-BACKED BIPV

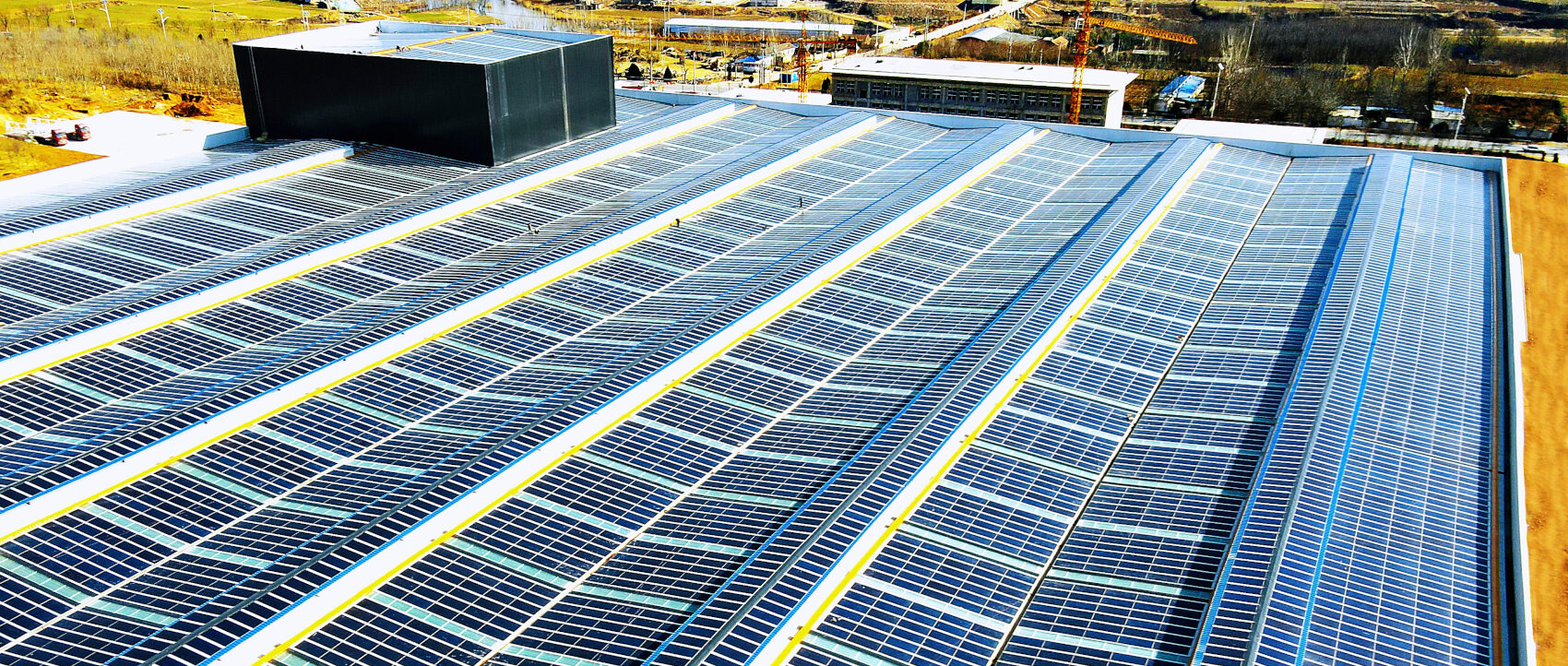

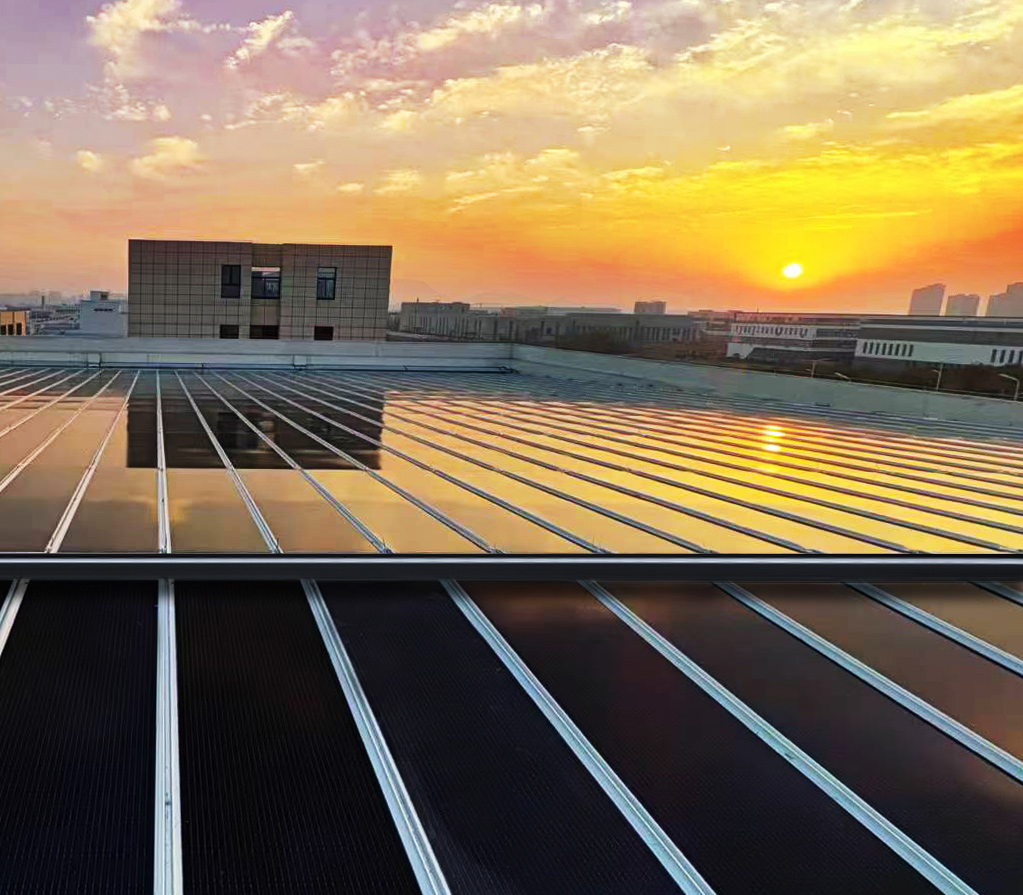

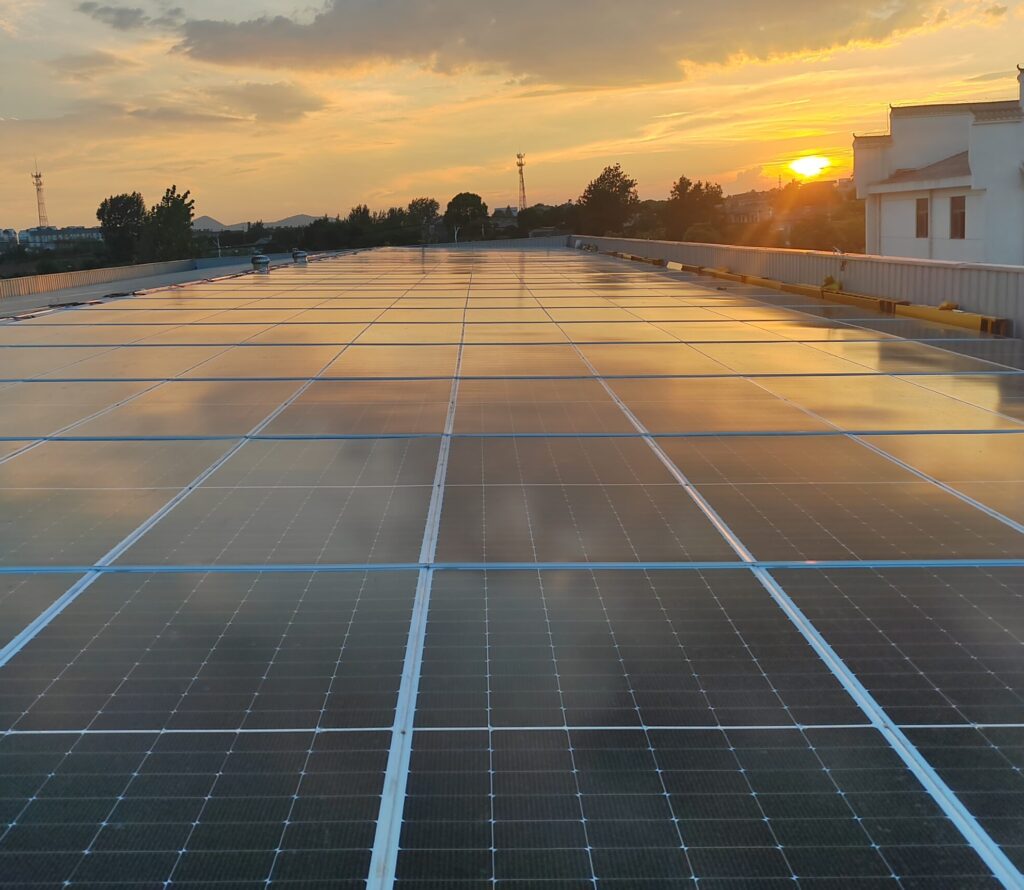

Rooftop Solar

ClearVue-Helios is a unified metal-backed BIPV platform available in an aluminium-backed rooftop panel for lightweight large-span installations and a steel-backed rooftop panel for trafficable high-access roofs.

When you choose the ClearVue-Helios products you will receive:
✓ Full system preliminary engineering design tailored to the project.

✓ Supply of panels, support system, fixings and sealants included to illustrate the build-up.

✓ Cabling routes and inverter specification, ready for handover to your electrical and structural consultants for approval.

✓ Prefabricated framing system to allow for fast and easy installation.

The typical payback in under 3 years, subject to panel layout, structural design, and local solar radiation.

TECHNICAL SPECIFICATIONS

Engineered to Perform

ClearVue-Helios rooftop panels are certified to IEC 61215, IEC 61730 and UL 790 with the same panel platform and sealed mounting system across aluminum and steel backing options.

Aluminium-Backed Physical Characteristics

Panel Weight	~5 kg/m²
Backing Material	Anodised aluminium
Sealed Environment	Fully sealed. Eliminates roof leaks
Best For	Large-span metal roofs, minimal load
Maintenance	Rinse with water or sprinkler
Mounting System	Proprietary fully sealed framing
Installation	Simple, modular preproduction process
Roof Compatibility	Existing steel and metal roofs
Colour Options	Standard panel finish

Steel-Backed Physical Characteristics

Panel Weight	~10.5 kg/m²
Backing Material	Galvanised steel
Trafficable	Yes — safe for foot traffic
Best For	High-access industrial roofs
Maintenance	Rinse with water or sprinkler
Durability	Heavy-gauge, extreme weather rated
Installation	Simple, modular preproduction process
Roof Compatibility	Existing steel and metal roofs
Colour Options	Standard panel finish

Aluminium-Backed Electrical Specifications (STC)

Panel Size	2275x1200
Peak Power Output	Approximately 220 Wp/m²
Max Power Output (Pmax)	590 – 605 W
Voltage at Max Power	Approximately 43.40 V
Junction Box	IP68, 3 bypass diodes

Steel-Backed Electrical Specifications (STC)

Panel Size	2275x1200
Peak Power Output	Approximately 220 Wp/m²
Max Power Output Pmax	590 – 605 W
Voltage at Max Power	Approximately 43.40 V
Junction Box	IP68, 3 bypass diodes

Certifications

IEC 61730	PV Module Safety Qualification
IEC 61215	Design Qualification & Type Approval
UL 790	BIPV Fire Tests of Roof Coverings
Certifier	TÜV Rheinland
Site Assessment	Available for all projects

BENEFITS

ClearVue-Helios Metal Backed Roof Panels

ClearVue-Helios rooftop solar is suitable for existing steel roofs. With a simple installation process and high performance, achieving energy conservation, emission reduction and economic benefits is possible.

Performance

The panels are expected to deliver over 220W/m²

Lightweight

The aluminum backed option weighs ~5 kg/m².

Trafficable

The steel backed option weighs ~10.5 kg/m² and is trafficable for easy roof access.

Fully Sealed

The proprietary mounting system provides a fully sealed environment that eliminates leaking and keeps buildings cooler.

Low Maintenance

Easy to maintain by rinsing the panels with water or a rooftop sprinkler system making them perfect for high dust environments.

Extends Roof Life Span

Forms a secondary roof surface that protects the existing roof.

PROVEN IN THE FIELD

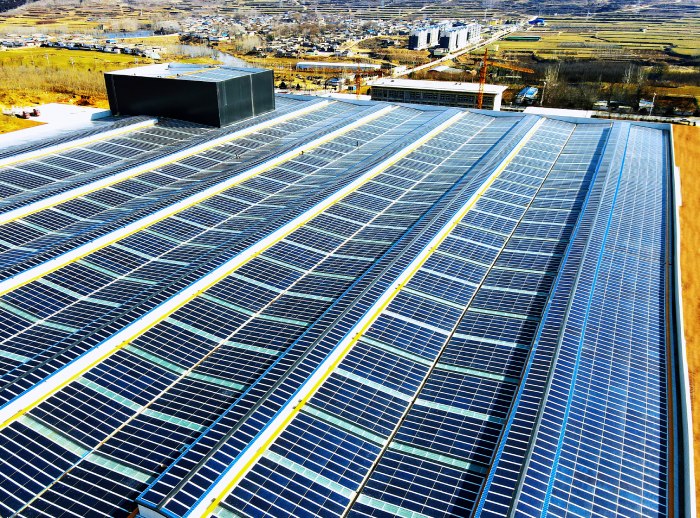

ClearVue-Helios Installations

ClearVue-Helios rooftop solar solution is deployed across industrial, commercial, and municipal facilities.

Victoria, Australia

'FabZero' Net Zero Energy Modular Home

Generation 2 Solar Glazing, High Performance Solar Cladding & ClearVue-Helios Trafficable Steel Back Solar Panels.

MANUFACTURING EXCELLENCE

Built with Precision. Backed by Science.

ClearVue-Helios panels are manufactured in an ISO-certified facility certified to IEC 61730, IEC 61215, and UL 790.

RESOURCES & DOWNLOADS

Everything You Need to Specify

ClearVue-Helios Solar Rooftop Spec Sheet

Full specifications for ClearVue-Helios aluminium-backed and steel-backed options, performance data, and system configurations.

Energy Modelling Guide

How to model ClearVue- Helios metal backed panels solar energy output for your specific project latitude, orientation, and configuration.

CAD & Revit Files

2D details, 3D models, and Revit families for seamless integration into your BIM workflow.

Installation Manual

Installation guide including electrical connection procedures.

READY TO DEPLOY CLEARVUE-HELIOS?

Rooftop Solar — Built for Your Site

ClearVue-Helios delivers proven performance with sub-3 year payback subject to layout, structural design and solar radiation. Our team is ready with site assessment, system design, and full procurement support.

+61 8 9220 9020
hello@clearvuepv.com

Up to 600W

Peak Per Panel

~10.5 Kg/m²

Steel-Backed Panel

Sub 5 Year

Pay Back*

CLEARVUE-HELIOS • METAL-BACKED BIPV

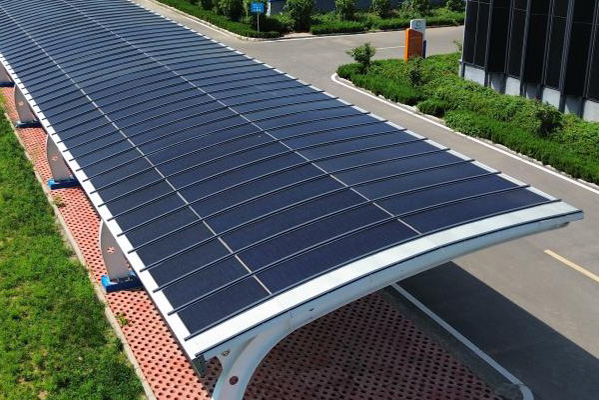

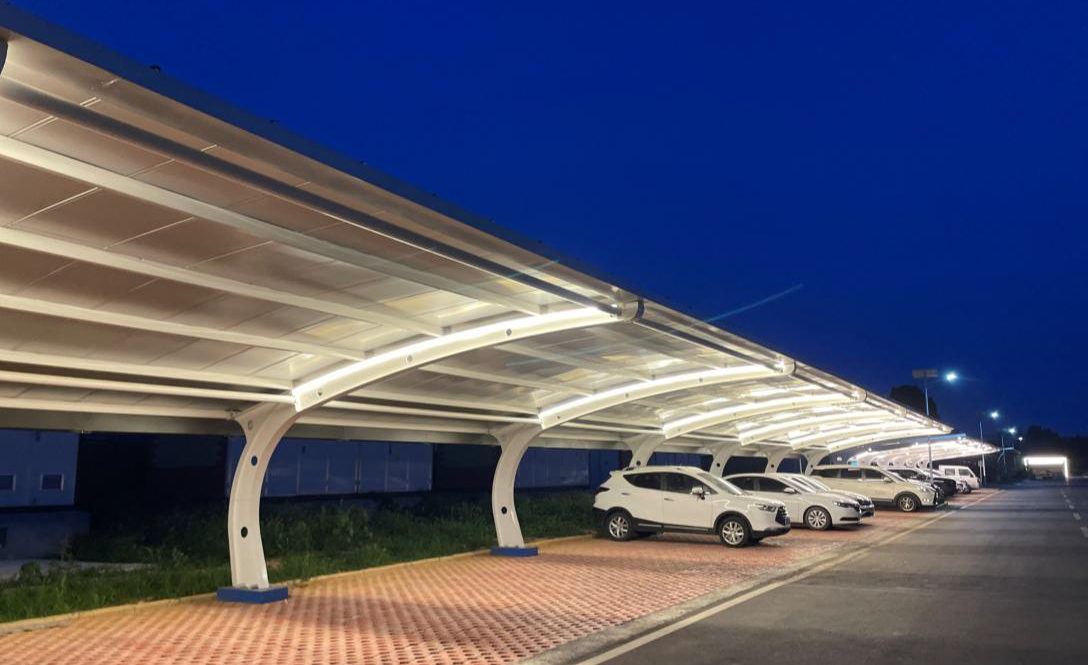

Carpark System

ClearVue-Helios now enables commercial, municipal and city facilities to maximise on-site renewable energy generation while adding functional beautification and safety benefits to parking infrastructure using the lightweight, low maintenance solar systems for carparks.

ClearVue-Helios panels become the carport rooftop resulting in a lightweight, lower cost and embedded carbon solution that delivers up to 605 Watts peak per panel renewable energy generation and a modern carpark design.

When you choose the ClearVue-Helios Solar Carpark you will receive:

✓ Full system preliminary engineering design tailored to the project.

✓ Supply of panels, support system, fixings and sealants included to illustrate the build-up.

✓ Cabling routes and inverter specification, ready for handover to your electrical and structural consultants for approval.

✓ Prefabricated framing system to allow for fast and easy installation.

TECHNICAL SPECIFICATIONS

Engineered to Perform

ClearVue-Helios solar carpark configurations are certified to IEC 61730, IEC 61215 and UL 790.

Physical Characteristics

Panel Weight	~10.5 kg/m²
Backing Material	Steel
Weather Resistant	Waterproof, fire-resistant, hail resistant
Payback	*Sub 5 years
Framing Systems	Two-Column System (12 Spaces) — Single-Column System (12 spaces) — Y-Column System (24 spaces)

* Subject to layout, structural design and solar radiation.

Electrical Specifications

Panel Size	2275x1200
Peak Power Output	Approximately 220 Wp/m²
Max Power Output Pmax	590 – 605 W
Voltage at Max Power	Approximately 43.40 V
Junction Box	IP68, 3 bypass diodes

Certifications

IEC 61730	PV Module Safety Qualification
IEC 61215	Design Qualification & Type Approval
UL 790	BIPV Fire Tests of Roof Coverings
Certifier	TÜV SÜD + UL
Site Assessment	Available for all projects

BENEFITS

ClearVue-Helios Metal Backed Roof Panels

Lightweight and Flexible

Metal-backed fully integrated solar carport rooftop weighs ~10.5 kg/m² decreasing embedded carbon and necessary structure for a more modern cantilevered support system.

Short Payback

5 year payback subject to panel layout, structural design and local solar radiations.

Weather Resistant

The installations are waterproof, fire-resistant, hail resistant and have no exposed junction boxes or DC cables ensuring a long lifespan.

Framing System

Choose from a two-column, single-column or Y-column system.

Fast Installation

The preproduction formula and modular design leads to a streamlined installation process.

Pillar Design

Deployment system reduces the risk of vehicle damage with two-post design eliminating pillars to drive into.

WHY CLEARVUE-HELIOS SOLAR CARPARK?

ClearVue-Helios Solar Carpark vs. Conventional Carport

FEATURE	CLEARVUE- HELIOS	CONVENTIONAL SOLAR PANELS
Energy Generation	✓ Up to 600 W per panel	0 Wp/m² — zero energy contribution
Panel Weight	✓ ~10.5 kg/m² — lightweight steel structure	15–25 kg/m² typical
Payback Period	✓ Sub-5 years (subject to various factors)	No energy payback
Carbon Offset	✓ Reduces embodied + operational carbon	No contribution to carbon reduction
Installation	✓ Waterproof, fire-resistant, hail resistant	Exposed to weather — no solar benefit

MANUFACTURING EXCELLENCE

Built with Precision. Backed by Science.

ClearVue-Helios solar carparks are manufactured in an ISO-certified facility certified to IEC 61730, IEC 61215, and UL 790.

RESOURCES & DOWNLOADS

Everything You Need to Specify

ClearVue-Helios Solar Carpark Spec Sheet

Full specifications for ClearVue-Helios Solar Carpark, performance data, and system configurations.

Energy Modeling Guide

How to model ClearVue- Helios Solar Carpark energy output for your specific project latitude, orientation, and configuration.
