BIPV FOR EVERY SURFACE • HIGH-PERFORMANCE ENVELOPE
Solar Cladding & Spandrel
ClearVue Solar Cladding and Spandrel offers creative freedom in sustainable architectural design. Whether you are designing a new build or working on a retrofit or refurbishment project, reliable energy efficiency can be built into your construction project.
SCROLL TO EXPLORE
⌄
Up to 200 Wp/m²
Peak Power Output
12 Year
Product Warranty
30 Year
Performance Warranty
More than 25%
Cell Efficiency
SOLAR CLADDING & SPANDREL
Architectural Power for Every Façade Surface
ClearVue Solar Cladding and Spandrel are high performance building envelope materials that replace conventional façade surfaces while generating clean electricity with no additional structure required.
Solar Cladding replicates colour, brick, marble, granite, and timber finishes, bringing energy generation to façade elements traditionally limited to a purely decorative role.
AESTHETIC BEAUTY

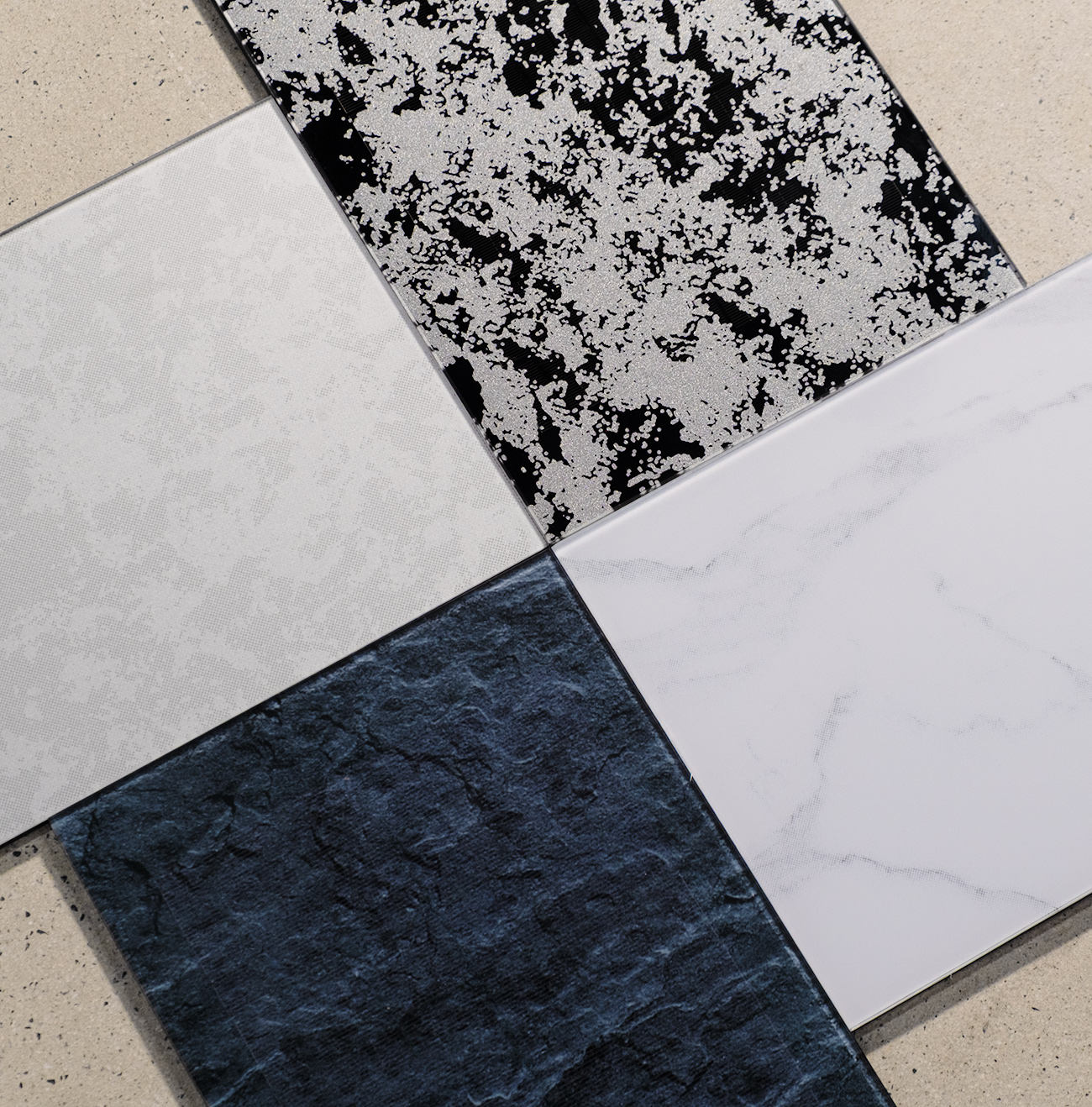

Colour, Material & Texture Matching
ClearVue offers a broad lineup of cladding colours, textures and materials to suit any architectural style whilst allowing energy generation across the entire building envelope.
THE PRODUCTS
Two Products, One Platform
Solar Spandrel and Solar Cladding share the same certified BIPV panel platform delivering architectural flexibility and maximum energy output.
01
Solar Spandrel
Solar Spandrel delivers up to 200 Wp/m² from standard spandrel zones. The ClearVue thermal management junction box ensures IP68 performance. Double-glazed unit options are available to meet thermal envelope requirements.
02
Solar Cladding
Solar Cladding replaces brick, marble, granite, timber or a colour façade finishes with BIPV panels that generate clean electricity while preserving the architect’s design intent. Project-specific sizing available for installations from 1,000 m².
03
Integrated Platform
Generated DC electricity feeds into the ClearVue Thermal Management Junction Box on the frame edge, connecting directly to building electrical systems via micro-inverter or string inverter configurations.
TECHNICAL SPECIFICATIONS
Engineered to Perform
Every ClearVue Cladding and Spandrel panel is manufactured to IEC 61215 and IEC 61730 standards, with TÜV SÜD fire classification and a 12-year product warranty and a 30-year performance warranty.
Electrical Specifications
| Peak Power Output | Up to 200 Wp/m² |
| Cell Efficiency | More than 25% |
| Open Circuit Voltage (Voc) | ~44V |
| Max System Voltage | 1000V DC |
| Operating Temperature | −40°C to +85°C |
| IP Rating | IP68 |
| Junction Box | Proprietary thermally bridged |
| Connector | MC4 compatible |
Physical Characteristics
| Weight | 60Kg |
| Dimension | Standard size 1750 x 1150 — Can be customised up to 2200 x 3300 |

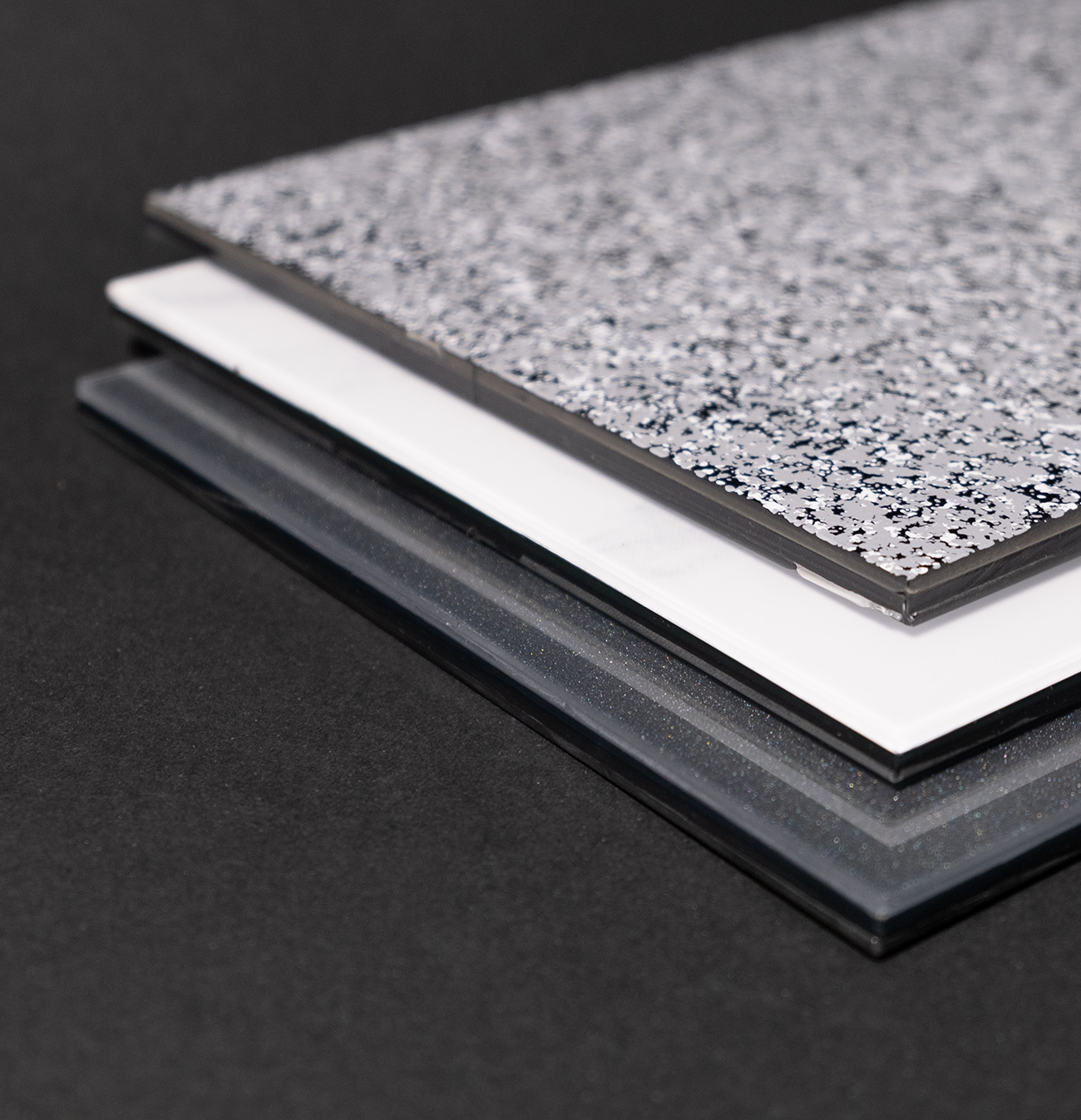

| Standard Glass Composition | 6mm low-iron glass + 0.76PVB + TOPCon cells + 0.76PVB + 6mm glass |
| Dimension of Cells | 182 x 91mm |
| Cell Layout | 6x9x2 |
| Cells | TOPCon |
| Variants | Multiple Colours and Textures |
This is a guideline. Electric and physical specifications will vary from project to project. For tailor-made options and accurate specifications for your building, please get in touch.
Certifications & Warranty
| IEC 61215 | Design Qualification & Type Approval |
| IEC 61730 | PV Module Safety Qualification |
| EN 13501-1:2018 | A2-s1,d0 — TÜV SÜD Fire Classification |
| AS 4284 | Testing of Curtain Wall Systems |
| UL 61730 | PV Module Safety (US) |
| Performance Warranty | 30 years |
| Product Warranty | 12 years |
BIPV FAÇADE PERFORMANCE
Replace Any Façade Material. Generate Clean Power.
Solar Cladding and Spandrel deliver up to 200 Wp/m² from the same surface area as conventional cladding turning every opaque façade zone into a clean energy asset. Available in material finishes that match any architectural language, with no premium structural requirements.
APPLICATIONS
Designed for Every Façade Application
Solar Cladding and Spandrel integrate directly into unitised and stick curtain wall systems, new build or retrofit whilst replacing conventional façade materials.
Unitised and Stick Curtain Walls
Full-height commercial and institutional façades. Solar Cladding and Spandrel panels integrate with standard unitised and stick-built curtain wall framing systems.
Retrofit
Retrofit existing buildings with Solar Cladding and Spandrel panels that restore building envelopes while adding solar generation without compromising aesthetics.
Seamlessly Integrated
Cladding can be created without solar technology for shaded areas to ensure the full façade is matching.
PROJECTS
Designed for Every Industry
Solar Cladding and Spandrel integrate into commercial, institutional, and residential façade systems as a direct replacement for conventional cladding and spandrel materials.
Commercial Buildings
Commercial towers and office complexes balancing world-class façade aesthetics with zero-energy building goals.
Residential Façades
High-end residential and multi-residential developments requiring premium façade finishes alongside net-zero energy performance targets.
Mixed Used Buildings
Retail, hospitality and mixed-use developments where façade aesthetics and energy performance are both critical design requirements.
WHY CLADDING & SPANDREL?
ClearVue vs. Conventional Cladding
| FEATURE | ClearVue Cladding & Spandrel | Conventional Cladding |
|---|---|---|
| Energy Generation | ✓ Up to 200 Wp/m² clean electricity | 0 Wp/m² — zero energy contribution |
| Material Options | ✓ Brick, marble, granite, timber finishes + more | Fixed material choice only |
| Fire Rating | ✓ A2-s1,d0 (TÜV SÜD certified) | Varies by cladding material |
| IP Rating | ✓ IP68 sealed system | Not typically rated |
| Payback Period | ✓ Energy generation offsets material cost premium | Ongoing energy cost with no offset |
| Carbon Offset | ✓ Reduces embodied + operational carbon | No contribution to carbon reduction |
| Installation | ✓ Like-for-like replacement for cladding | Standard cladding installation |
PROVEN IN THE FIELD
Cladding & Spandrel Projects
ClearVue Solar Cladding and Spandrel are specified on commercial and institutional projects across multiple continents.
SYDNEY, AUSTRALIA
City Tattersalls Club
Façade System: Solar Cladding and Solar Skylight on top floors
PERTH, AUSTRALIA

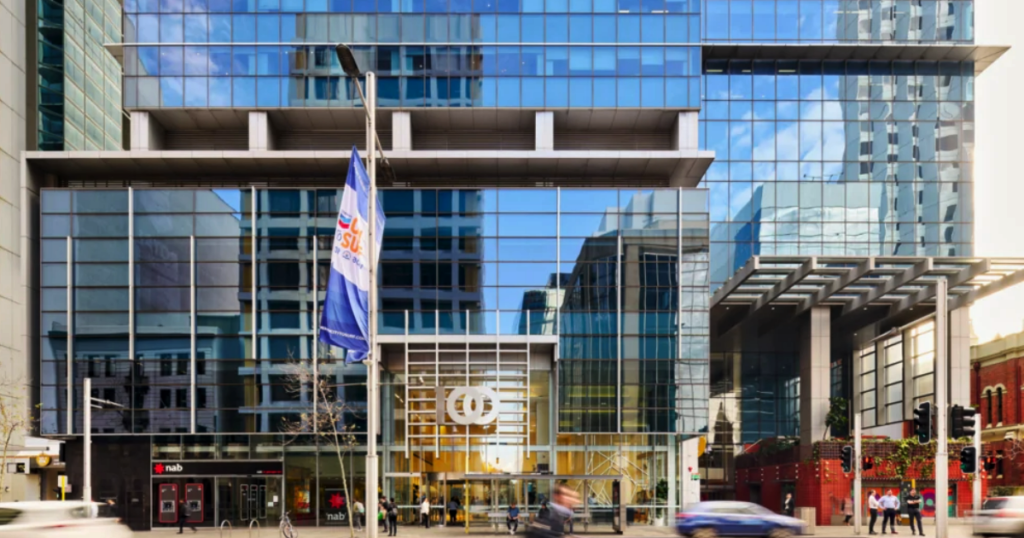

100 St Georges Terrace
Façade System: Solar Cladding covering plant room on roof
MANUFACTURING EXCELLENCE
Built with Precision. Backed by Science.
Every ClearVue Solar Cladding and Spandrel panel is manufactured in an ISO-certified facility with rigorous quality control at every stage.
- Certified to IEC 61215, IEC 61730, and EN 13501-1:2018 A2-s1,d0 (TÜV SÜD fire classification) with a 12-year product warranty and 30-year performance warranty.
- ISO 9001:2015 certified manufacturing facility
- 100% electroluminescence (EL) tested before shipment
RESOURCES & DOWNLOADS
Everything You Need to Specify
Cladding & Spandrel Datasheet
Full specifications for
Solar Cladding and
Spandrel, including performance data, material options, and ordering details.
Energy Modelling Guide
How to model Solar Cladding & Spandrel energy output for your specific project latitude, orientation, and configuration.
CAD & Revit Files
2D details, 3D models, and Revit families for seamless integration into your BIM workflow.
Installation Manual
Installation guide for glazing contractors, including electrical connection procedures.
READY TO SPECIFY CLADDING OR SPANDREL?
Solar Façade Solutions for Every Building Type
Whether you’re specifying a curtain wall, retrofit cladding, or new-build façade ClearVue Solar Cladding and Spandrel panels replace conventional materials with high-performance BIPV. Our team is ready to assist with design, energy modeling, and specification support.
